Product Description
This seal is made by high-strength polyurethane.
Technical Data
Temperature: -20 - +100
Speed: 15 m/s
Pressure: 45MPa
Material
Polyurethane color yellow
This seal is made by high-strength polyurethane.
Technical Data
Temperature: -20 - +100
Speed: 15 m/s
Pressure: 45MPa
Material
Polyurethane color yellow

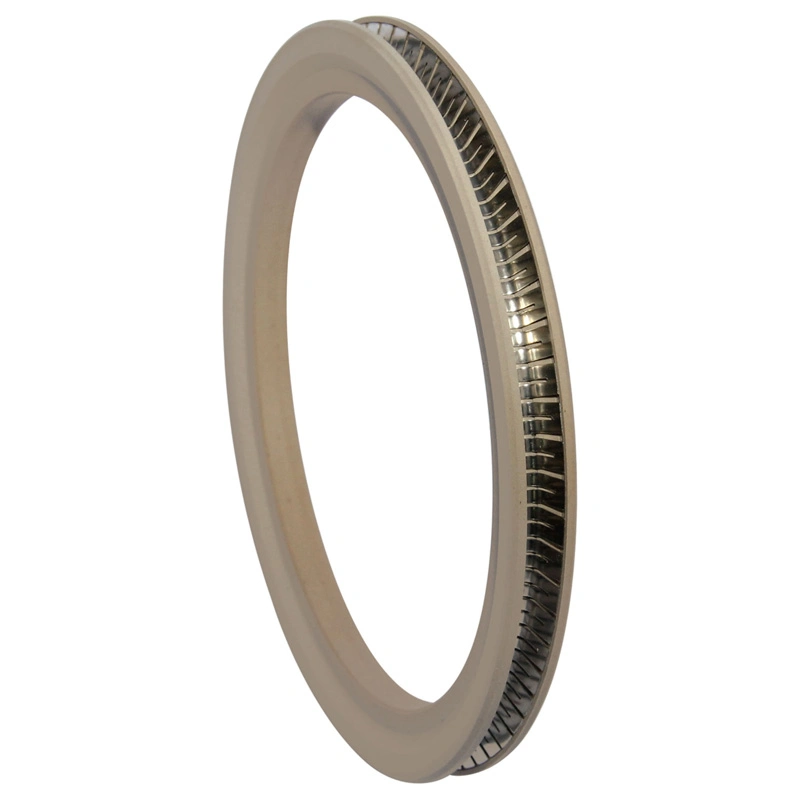

| Name | Ptfe seals spring energized seals made in china |
| Sliding speed[m/s] | 15 |
| Temperature [° C] | -40...+260 For specific applications beyond indicated range, please enquire. |
| Pressure Pr: N/mm² (Max) | 45 |
| Medium | Virtually all fluids, chemicals and gases |
| Material | Virgin PTFE, PTFE+carbon, PTFE+glass fiber, PTFE+bronze, PTFE+polyester, PEEK etc. Other special material is also available. |
| Color | coffee, white, black, blue, beige |
| Type of spring | V-spring, Helical Spring, Slanted Coil Spring |
| Size | Supply standard and non-standard size |
| Advantages | 1. Resistant to most fluids and chemicals 2. Low coefficients of friction 3. Stick-slip-free operating for precise control 4. High abrasion resistance and dimensional stability 5. Can handle rapid changes in temperature 6. No contamination in contact with foodstuffs. pharmaceutical and medicinal fluids. 7. High temperature range 8. Sterilisable 9. Unlimited shelf life. |
| Application | Valves Pumps Separators Actuators Dosing devices |
| Certificates | ISO9001-2008, SGS |
